D-Rack
D-Rack
(Call for pricing)

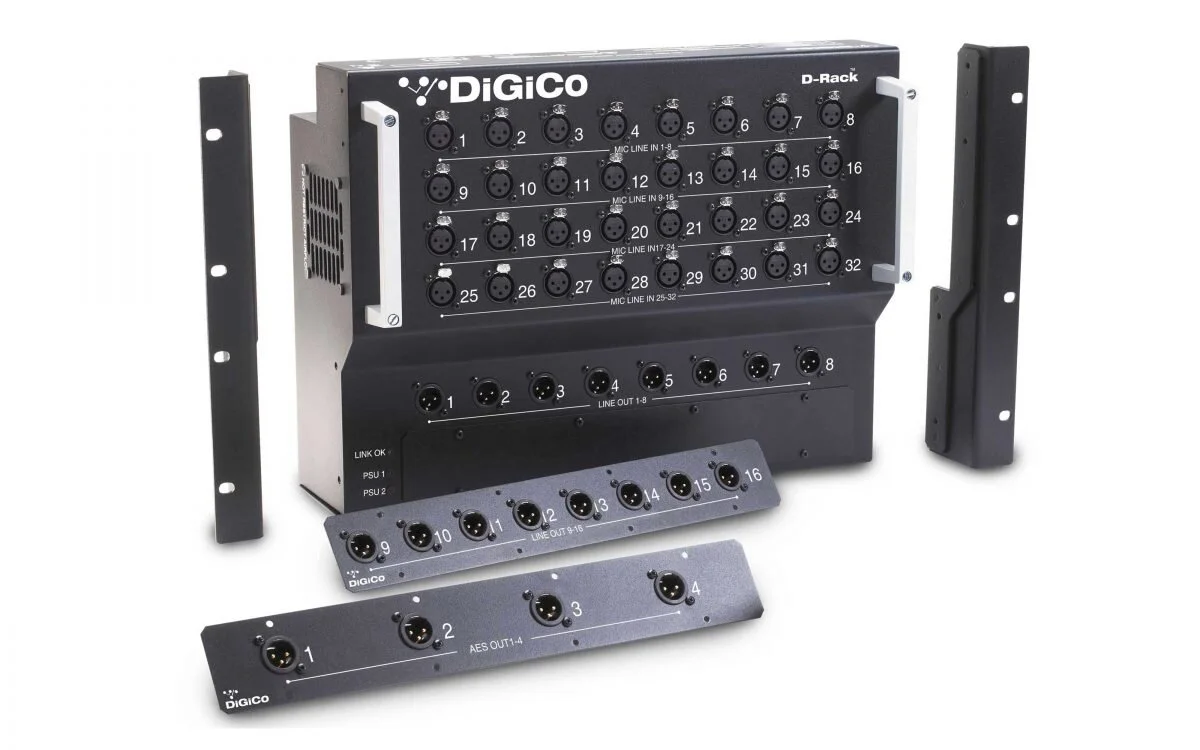

As recognisable as the consoles it supports, the DiGiCo D-Rack comes as standard with the SD9 and is available as an option on all SD-Series consoles.
Floor mounted DiGiCo I/O
Providing 32 microphone inputs, 8 line outputs and 8 optional modular outputs that can be selected as either analogue or AES, the D-Rack provides a maximum capacity of 32 ins and 16 outs at 48kHz. The hum and noise of analogue multicores are eliminated courtesy of a digital Cat5e connection to the console work surface. When running at 96kHz on Cat5e, the D-Rack supports 28 mic inputs and up to 16 outputs.
For full flexibility, optional 7U rack mount ears are also available alongside an extra PSU for redundancy and a fibre optic connection.
FEATURES
Floor mounted stage rack
Up to 32 Inputs and 16 outputs at 96kHz
Optional fibre optic connection
Optional redundant PSU and 7U rack mounting kit
