RCF HDL 30-A
RCF HDL 30-A
(Call for pricing)
RCF CYPRUS
ACTIVE TWO-WAY LINE ARRAY MODULE
ACTIVE TWO-WAY LINE ARRAY MODULE
ACTIVE TWO-WAY LINE ARRAY MODULE
The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver.
OVERVIEW
The time coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max. The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system.
FEATURES
2200W Two Way Amplifier
137 dB Max SPL
48 kHz, 32 bit DSP processing
1.4" Titanium Compression Driver, 4.0" voice coil
2 x 10" Neodymium Woofers, 2.5" voice coil
Exclusive FiRPHASE technology on-board
RDNet Control and Management
680 Hz Crossover Point
+ Acoustical specifications
FREQUENCY RESPONSE: 50 Hz ÷ 20000 Hz
MAX SPL @ 1M: 137 dB
HORIZONTAL COVERAGE ANGLE: 100°
VERTICAL COVERAGE ANGLE: 15°
+ Transducers
COMPRESSION DRIVER:
1 x 1.4'' neo, 4.0'' v.c
WOOFER:
2 x 10'' neo, 2.5'' v.c
+ Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
+4 dBu
+ Processor section
CROSSOVER FREQUENCIES:
680 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Preset, RDNet bypass
RDNET:
Yes
+ Power section
TOTAL POWER:
2200 W Peak, 1100 W RMS
HIGH FREQUENCIES:
600 W Peak, 300 W RMS
LOW FREQUENCIES:
1600 W Peak, 800 W RMS
COOLING:
Forced
CONNECTIONS:
Powercon IN/OUT
+ Physical specifications
CABINET/CASE MATERIAL:
PP Composite
HARDWARE:

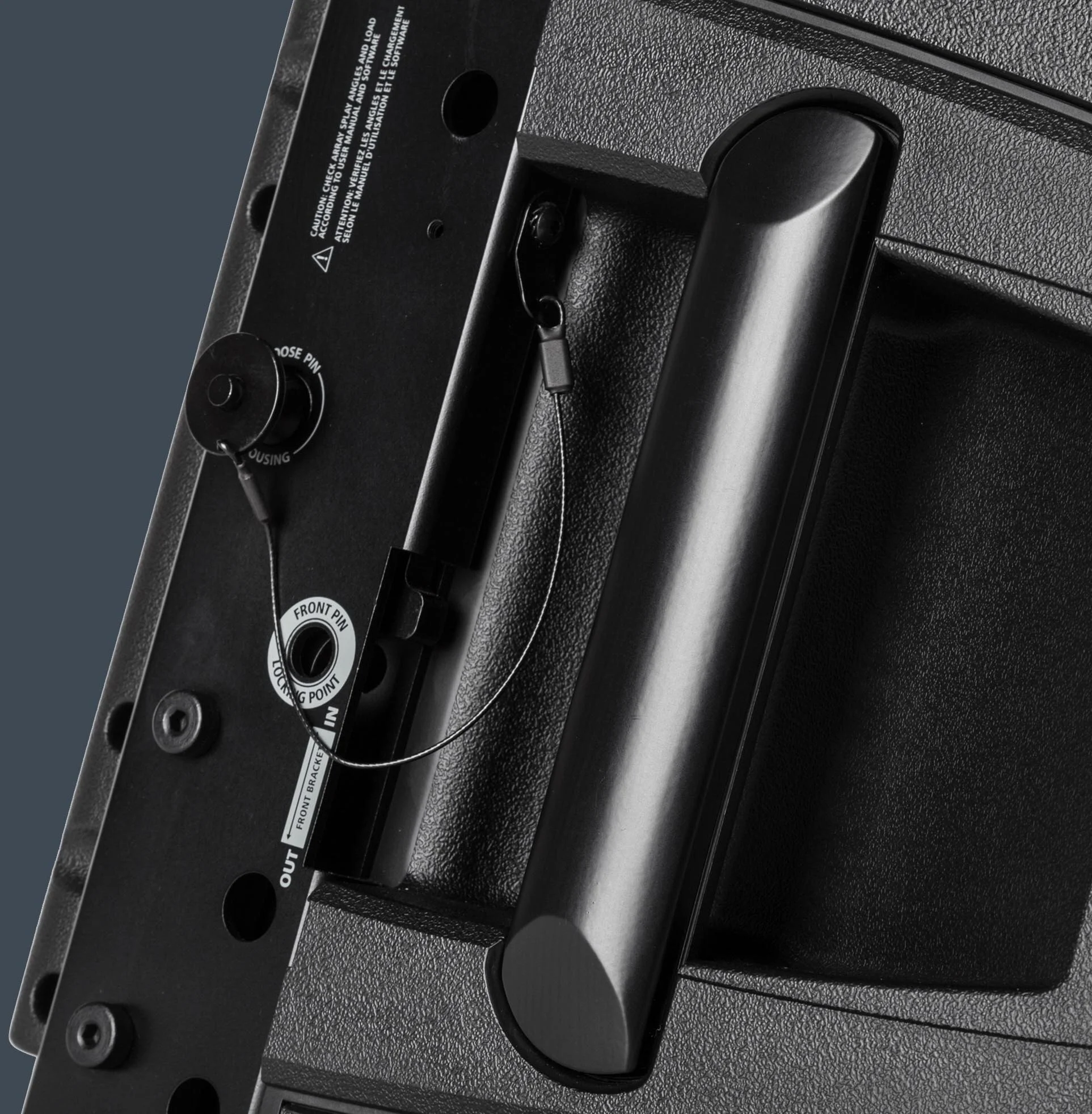

Array fittings
HANDLES:
2 Side
GRILLE:
Steel
COLOR:
Black
+ Size
HEIGHT:
293 mm / 11.54 inches
WIDTH:
705 mm / 27.76 inches
DEPTH:
502 mm / 19.76 inches
WEIGHT:
25 kg / 55.12 lbs
+ Shipping informations
PACKAGE HEIGHT:
365 mm / 14.37 inches
PACKAGE WIDTH:
800 mm / 31.5 inches
PACKAGE DEPTH:
550 mm / 21.65 inches
PACKAGE WEIGHT:
28.2 kg / 62.17 lbs
