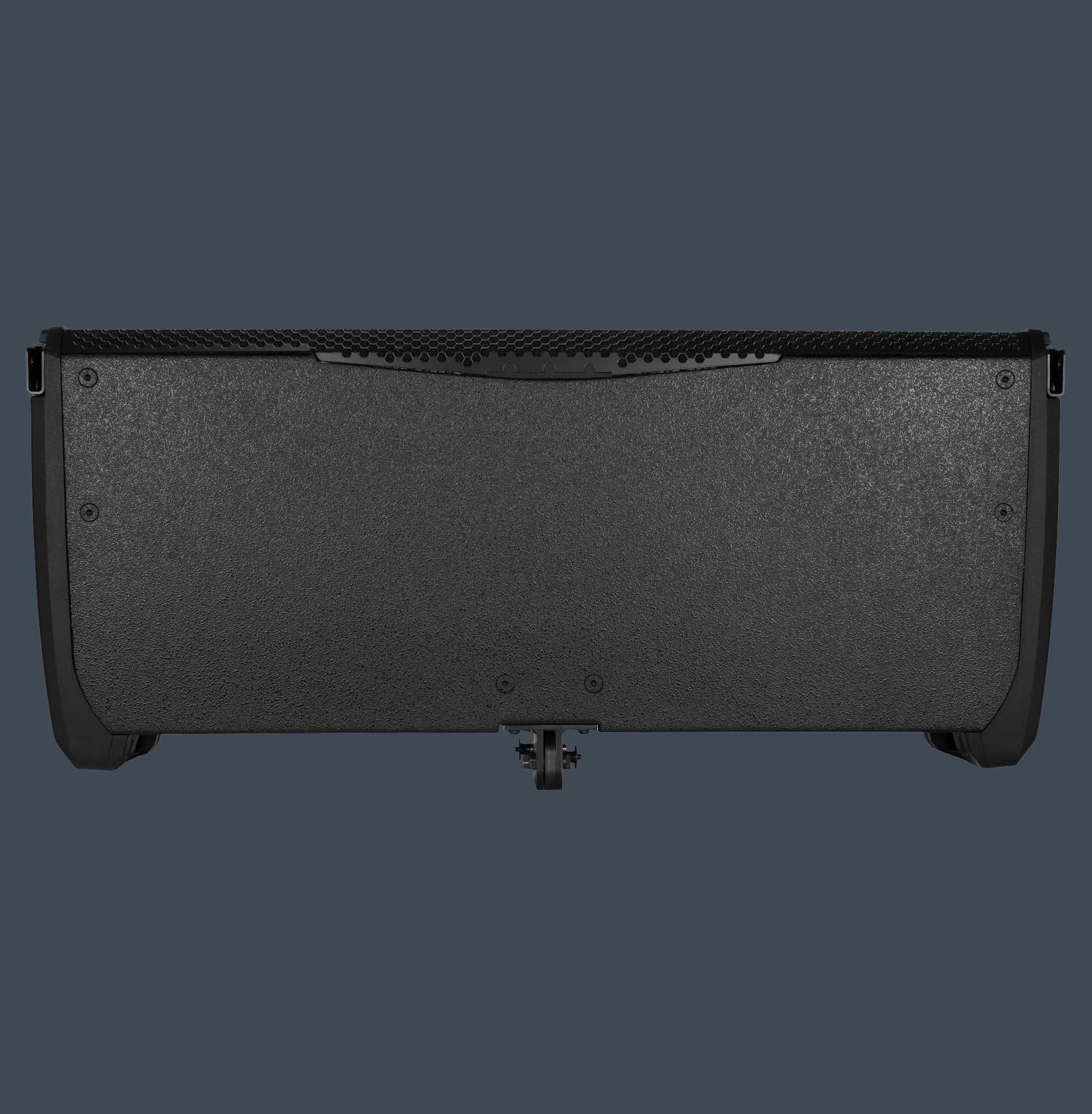

RCF HDL 50-A
RCF HDL 50-A
(Call for pricing)
RCF CYPRUS
ACTIVE THREE-WAY LINE ARRAY MODULE
ACTIVE THREE-WAY LINE ARRAY MODULE
ACTIVE THREE-WAY LINE ARRAY MODULE
The HDL 50-A is a true active high power speaker system ready to use touring system for large events, indoors and outdoors. Equipped with 2x12” woofers, 4x symmetrical 6.5” midranges and two 2” drivers, it offers excellent playback quality and high sound pressure levels with a built in 2200W RMS powerful digital amplifier that delivers superior SPL, while reducing energy requirement.
OVERVIEW
Using advanced neodymium magnets and a groundbreaking new housing constructed from lightweight plywood and polypropylene, it has a remarkably low weight for easy handling and flying. The HDL 53-AS is the ideal flyable bass complement for the HDL 50-A array system. The symmetrical design of the cabinet produces identical left and right coverage. The component positioning and special DSP crossover filtering of the HDL 50-A take care of the constant directivity without spots of break up or attenuation. Furthermore, the custom 4PATH designed waveguide allows a precise coverage of 90 x 10 degrees, while also delivering a superb, linear high frequency response. The unique shape of the four ducts forming the guide create an ideal isophasic load from 800 Hz to the highest audible frequencies.
FEATURES
4400 Watt, 3 way amplification
140 dB max SPL
8 x high power neodymium transducers
48 kHz, 32 bit DSP processing
RDNet on boardRemote monitoring and control
Symmetrical design
Extremely low weight
+ Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz
MAX SPL @ 1M:
140 dB
HORIZONTAL COVERAGE ANGLE:
90°
VERTICAL COVERAGE ANGLE:
10°
+ Transducers
COMPRESSION DRIVER:
2 x 1.4'' neo, 3.0'' v.c
MIDRANGE:
4 x 6.0'' neo, 2.0'' v.c
WOOFER:
2 x 12'' neo, 3.0'' v.c
+ Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XLR, RDNet Ethercon
OUTPUT CONNECTORS:
XLR, RDNet Ethercon
INPUT SENSITIVITY:
+4 dBu
+ Processor section
CROSSOVER FREQUENCIES:
200 Hz - 800 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Cluster size, HF correction, RDNET
+ Power section
TOTAL POWER:
4400 W Peak, 2200 W RMS
HIGH FREQUENCIES:
1100 W Peak, 550 W RMS
MID FREQUENCIES:
1100 W Peak, 550 W RMS
LOW FREQUENCIES:
2200 W Peak, 1100 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
+ Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
Integrated Mechanics
HANDLES:
2 side, 2 rear
GRILLE:
Steel
COLOR:
Black
+ Size
HEIGHT:
366 mm / 14.41 inches
WIDTH:
1171 mm / 46.1 inches
DEPTH:
502 mm / 19.76 inches
WEIGHT:
56 kg / 123.46 lbs
+ Shipping informations
PACKAGE HEIGHT:
400 mm / 15.75 inches
PACKAGE WIDTH:
1200 mm / 47.24 inches
PACKAGE DEPTH:
600 mm / 23.62 inches
PACKAGE WEIGHT:
60 kg / 132.28 lbs
